ATB · Phylogenetic trees

7 questions · 21 marks · 2 papers

Answer key

Indian Institute of Technology Madras

BS Degree Programme · Examination & Study Paper

Algorithmic Thinking in Bioinformatics

Phylogenetic trees

Official Paper

Examination Instructions & Guidelines

Solve on notebook/paper first before checking solutions.
MCQ: Exactly 1 option is correct. Negative marking applies.
MSQ: One or more options correct. Select all to score.
NAT: Numerical response. No negative marking.
Scientific calculator allowed for all calculations.
Official answer key is sealed at the end of this sheet.

End Term · 31 Aug 2025 (FN)End Term

Read the passage below, then answer Q1–Q3
You are asked to construct a phylogeny on the distance matrix D using the Additive Phylogeny algorithm. At the end of the 5th iteration, you notice the D^(bald) matrix consumes 81 units of memory space. Assume every entry in a matrix requires 1 unit of space. Also assume the count of the iterations starts from 1. Answer the given subquestions with respect to the same.
Q1NAT2 Marks·Write the number
Key ↓
How many units of space is required to the corresponding D^(trimmed) matrix? Enter the answer as a single integer.
Your answer:
Q2NAT2 Marks·Write the number
Key ↓
How many leaves will be there in the final phylogeny constructed at the end of the algorithm? Enter the answer as a single integer.
Your answer:
Q3NAT1 Mark·Write the number
Key ↓

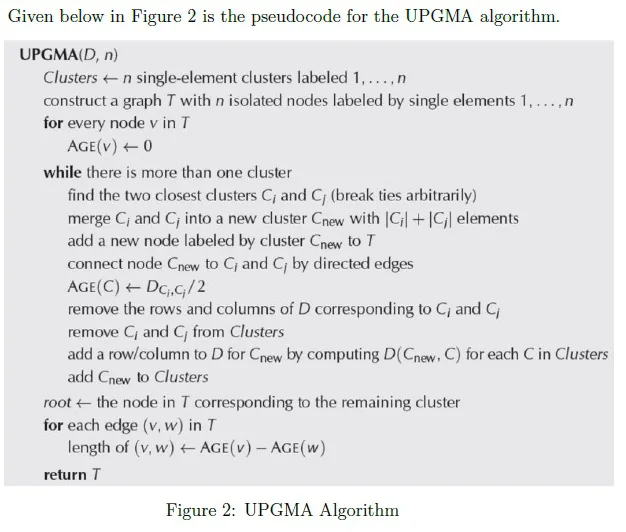

Read the pseudocode carefully and calculate the number of iterations required by the UPGMA algorithm to construct the Ultrametric tree on D? Enter the answer as a single integer.
Your answer:

Quiz 2 · 3 Aug 2025 (AN)Quiz 2

Q4MSQ3 Marks·Choose all correct options
Key ↓
Which of the following statements about additive distance matrices are true?
1. AEvery 3 x 3 distance matrix is additive.
2. BEvery 4 x 4 distance matrix is additive.
3. CThere exists a 3 x 3 distance matrix that is not additive.
4. DThere exists a 4 x 4 distance matrix that is not additive.
5. EFor every additive distance matrix, there exists a simple tree fitting the matrix.
Q5NAT4 Marks·Write the number
Key ↓
Your answer:

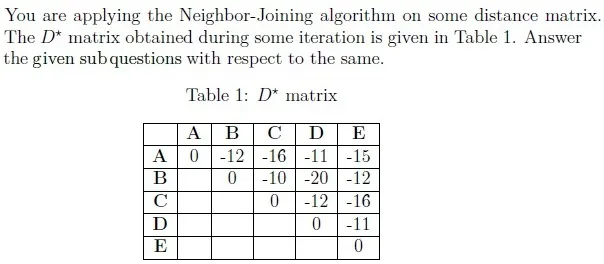

Read the passage below, then answer Q6–Q7
Q6MCQ5 Marks·Choose one option
Key ↓
1. A
2. B
3. C
4. D
Q7MCQ4 Marks·Choose one option
Key ↓
Which of the following represents the distance matrix for the next iteration?
1. A
2. B
3. C
4. D

Official Key

Master Answer Key & Explanations

Official answer keys from IIT Madras BS past papers. Click any question to review.

Reveal Key

Q164

Q213

Q312

Q4A, D, E

Q53

Q6C

Q7A
